AnalytikJena C-71 Viewing Cabinet

  • AnalytikJena C-71 Viewing Cabinet
Price:
$2,683.97
SKU:
AJ 95-0022-02
Weight:
27.00 LBS
Shipping:
Calculated at checkout


Product Description

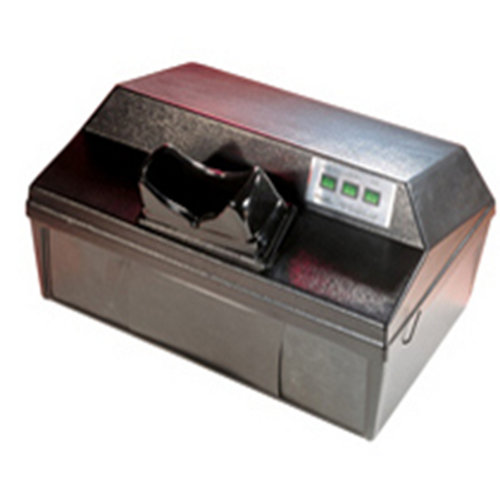

AnalytikJena's Model C-71 Chromato-Vue Cabinet is a large UV viewing cabinet manufactured from durable, lightweight plastic. The Model C-71 Chromatic-Vue viewing cabinet features a removable bottom panel so the cabinet may be placed over large samples or a transilluminator. The C-71 Viewing Cabinet includes four high intensity 15 watt UV tubes providing 365nm illumination.  These UV tubes are positioned on two sides of the cabinet providing uniform UV illumination for fluorescence studies and non-destructive testing.

Features

  • Cabinets are manufactured from lightweight plastics,
  • Control switches are conveniently located for selecting UV illumination or the interior overhead white light,
  • The soft rubber view port provides adequate space for glasses and includes a contrast control filter,
  • Easy access to the cabinet interior is via the curtain which also blocks ambient light.

Specifications

  • UV Source: 365nm,
  • Watts: 15 Watts (four tubes),
  • Overhead white light,
  • Select input power:  110VAC or 240VAC
  • Dimensions:
    • Interior: 21W x 13D x 8H in. (432 x 356 x 127mm)
    • Exterior: 23.4W x 15.8D x 13H in. (594 x 400 x 330mm)
  • Product Weight: 22 lb (10.3 kg)

Part Numbers

Volts

95-0022-01 115V
95-0022-02 230V

Literature

adobe-pdf-icon-transparent-halfinch.pngSee Operating Manual

---

Warranty Information

AnalytikJena 's products are guaranteed to be free of defects in materials, workmanship and manufacture for one (1) year from date of purchase, except as follows:
- Consumable and disposable parts are guaranteed to be free from defects in manufacture and materials for ninety (90) days from date of purchase.
- UV tubes and filters are guaranteed to be free from defects in manufacture and materials for ninety (90) days from date of purchase.
- AnalytikJena Transilluminators are guaranteed to be free from defects in manufacture and materials for two (2) years from date of purchase.

If equipment failure or malfunction occurs during the warranty period, AnalytikJena shall examine the inoperative equipment and have the option of repairing or replacing any part(s) which, in the judgment of AnalytikJena , were originally defective or became so under conditions of normal usage and service.

No warranty shall apply to this instrument, or part thereof, that has been subject to accident, negligence, alteration, abuse or misuse by the end-user. Moreover, AnalytikJena makes no warranties whatsoever with respect to parts not supplied by AnalytikJena or that have been installed, used and/or serviced other than in strict compliance with instructions appearing in this manual.

In no event shall AnalytikJena be responsible to the end-user for any incidental or consequential damages, whether foreseeable or not, including but not limited to property damage, inability to use equipment, lost business, lost profits, or inconvenience arising out of or connected with the use of instruments produced by AnalytikJena . Nor is AnalytikJena liable or responsible for any personal injuries occurring as a result of the use, installation and/or servicing of equipment.

This warranty does not supersede any statutory rights that may be available in certain countries.
