Product Description
Globe Scientific GTR-DVS was designed for gently mixing a wide range of tubes, containers and bottles. The speed can be set digitally anywhere between 10rpm and 70rpm. In addition to a rolling motion, the rollers are mounted slightly off-center to rise and fall in a "see-saw" fashion. These two motions ensure your samples are thoroughly mixed for optimal homogeneity. The six rollers can accommodate up to 8.8 lbs or ten 15/50mL centrifuge tubes.
Applications
- Process liquid collection,
- Liquid storage,
- Lightweight and safe for shipping and transport
Features
- LCD Display of seed and time,
- Six (6) roller design for gentle sample agitation and ease of cleaning,
- Continuous or times operation,
- Rolling motion with see-saw movement,
- View both speed and time concurrently,
- Cold room and incubator compatible,
- DC brushless motor is quiet and maintenance free.
Specifications

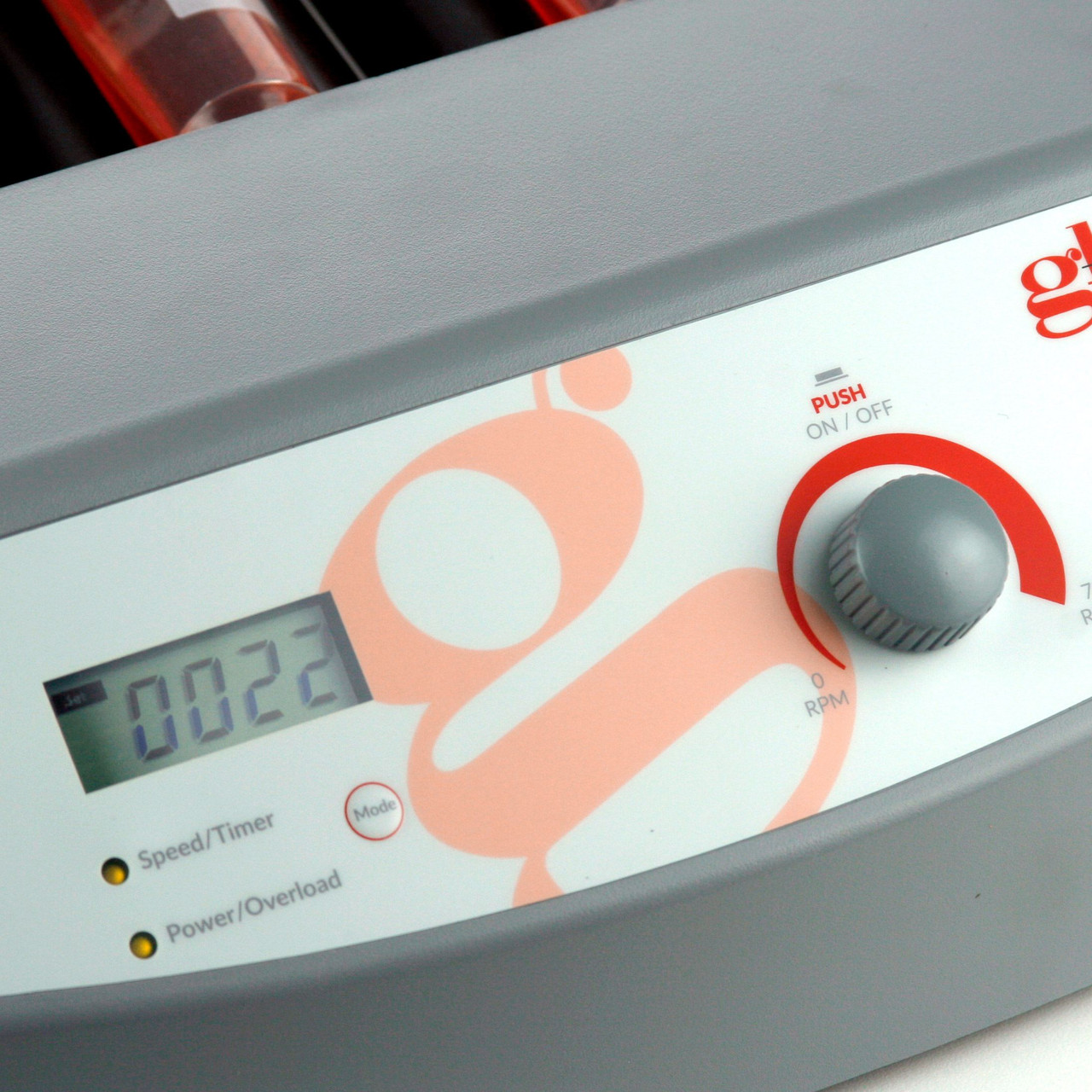

- The GTR-DVS can accurately set time and speed using the simple parameter adjustment knob and digital display,
- Speed range of 10-70rpm,
- The six roller configuration can accommodate up to ten 15mL or ten 50mL tubes and is compatible with a variety of other tube sizes,
|
Specifications |
GTR-DVS |
|
Amplitude |
24mm |
|
Motion |
Rocking and rolling |
|
Max. Load Capacity |
4 kg (8.8lbs) |
|
Number of Rollers |
6 |
|
Roller Size (Length) |
280mm (11") |
|
Speed Range |
10 - 70rpm |
|
Timer |
Yes |
|
Timer Display |
LCD |
|
Time Setting Range |
1-1199 min |
|
Operation Mode |
Continuous or timed |
|
Voltage |
100-240V, 50/60Hz |
|
Power |
30W |
|
Dimensions (W x D x H) |
260 x 450 x 120mm (10.2 x 17.7 x 4.7") |
|
Weight |
5.1 Kg (11.2 lbs) |
|
Operating Temperature |
5 to 40°C |
|
Permissible Relative Humidity |
80% RH (non-condensing) |
|
Protection Class |
IP21 |
|
Warranty |
2 Years |
---
