Product Description

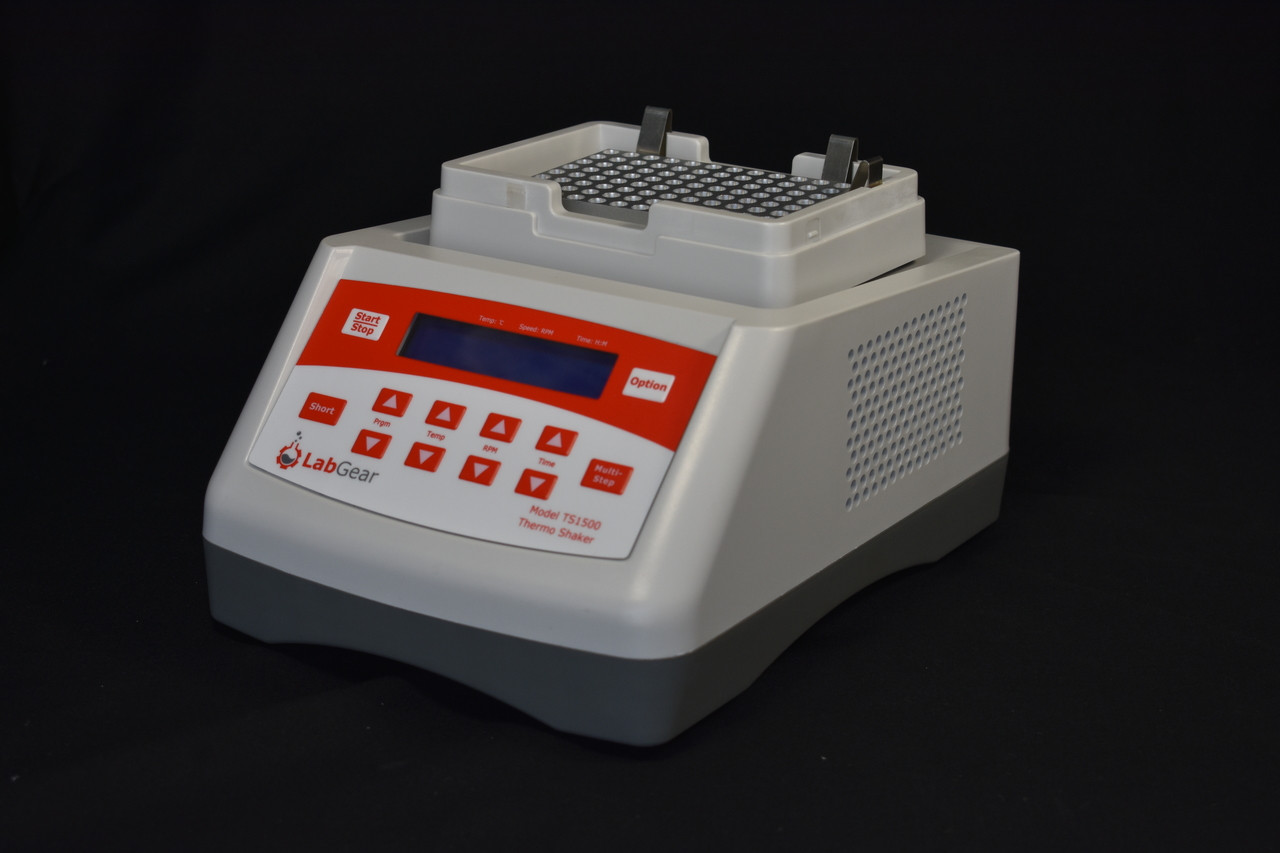

The LabGear MTS1500 Multi-Therm Shaker and TS1500 Thermo-Shaker are both temperature controlled shakers useful for a variety of applications. The speed, time and temperature settings are continuously visible on the LCD, showing both actual and selected values simultaneously.
Features
- Bright LCD display for ease of reading,
- Clear and easy setup, programming and use,
- Reliable design with integrated over-temperature control to ensure user and lab safety and sample integrity,
- Each device is equipped with lifters for ease of replacing blocks,
- Precision wells for uniform thermal transfer,
- Assorted blocks for a wide variety of tube sizes,
- Brushless DC Motor: noiseless long service life maintenance-free,
- Certified to conform to EN61010-1 and CE safety standard,
- Digital display of time, temperature and speed for process accuracy, repeatability, convenience and control.
Applications
A wide range of molecular biology applications:
- DNA extractions,
- Proteinase K digestion of cells and tissues,
- Re-suspension of pellets,
- Sample storage at below ambient with active cooling (MTS1500),
- Mixing protein quantification assays,
- ELISA assays,
- Bacteria and yeasts cell cultures,
- Enzymatic reactions and deactivations,
- Transformation of bacteria strains and plasmids,
- Denaturation of DNA, RNA, and proteins,
- Lysis reactions at 100 °C,
- Nucleic acids and proteins labeling.
Specifications
- Heating and Cooling
|
Model No. |
MTS1500 |
TS1500 |
|
Temp setting range |
0℃ - 100℃ |
|
|
Temp control range |
Ambient-20℃ - 100℃ |
Ambient+5℃ - 100℃ |
|
Time range |
1 - 5999 min / ∞ |
|
|
Temp accuracy |
≤±0.3℃ |
|
|
Temp Adjust Increments |
1℃ |
|
|
Display accuracy |
0.1℃ |
|
|
Temp uniformity |
≤±0.3℃ |
|
|
Heating Time |
≤12min |
|
|
Cool Time from Heated |
≤10min |
N/A |
|
Cool Time from Room Temp |
≤15min |
N/A |
- Multi-stage programming up to 5 phases,
- Multi-cycle up to 99 times,
- Infinite run operation,
- Short mix manual mixing,
- Auto-resume following power loss,
- User re-calibration,
- Add optional blocks for expanded capability:
|
Part Number |
Tube Size |
Positions |
Weight (Lbs.) |
Max. RPM |
Bottom shape |
Hole Depth (mm) |
Height (mm) |
Diameter (mm) |
|
TB0296 |
0.2ml |
96 |
0.28 |
1500 |
cone |
12 |
17 |
6.7 |
|
TB0554 |
0.5ml |
54 |
0.28 |
1500 |
cone |
24 |
25 |
8 |
|
TB1535 |
1.5ml |
35 |
0.26 |
1500 |
cone |
31 |
32 |
10.8 |
|
TB2-35 |
2.0ml |
35 |
0.26 |
1500 |
round |
31 |
32 |
10.8 |
|
TB0515/1520 |
0.5ml & 1.5ml |
15 & 20 |
0.36 |
1800 |
cone |
24 & 31 |
32 |
8 & 10.8 |
|
TB0296E |
0.2ml |
ELISA Plate |
0.28 |
1500 |
no hole |
—— |
25 |
—— |
|
TB5-24 |
5ml |
24 |
0.34 |
1800 |
Flat |
34 |
37.5 |
13.75 |
|
TB10-15 |
10ml |
15 |
0.44 |
1000 |
Flat |
56 |
59 |
16 |
|
TB15-12 |
15ml |
12 |
0.54 |
800 |
Flat |
98 |
103 |
17 |
|
TB500-6 |
50ml |
6 |
0.28 |
800 |
Flat |
75 |
78 |
29.5 |
(Please contact us directly if you have a customized block requirement.)
- Input Power: 150W,
- Power Cord: 2 Meter,
- Input Voltage: 100-240VAC, 50-60HZ,
- Dimensions (DxWxH): 10.25" x 6" x 7.75" (260x150x195 mm),
- Weight - TS1500: 17 lbs (7.5kg),
- Weight - MTS1500: 19 lbs (8.5kg),
---
