MRC DBD Series Dry Bath Incubators

Product Description

MRC Labs Dry Bath Incubators are helpful for a variety of applications in lab operations which require rapid heating under good control.

* HEATING BLOCK(S) NOT INCLUDED - ORDER SEPARATELY.

Applications

• Molecular biology and histology,
• Restriction digests,
• Denaturing DNA,
• BUN,
• Melting agar,
• Coagulation,
• Hybridization,
• Hot-start thermo-cycled reaction.

Features

• Up to 150°C of wide temperature range with excellent uniformity,
• High wattage heater regulated by a microprocessor for rapid heating and precise-accurate control,
• LED Display for easy to see read out,
• Even transfer of heat between block and heating element ensured by aluminum block chamber,
• Arrow keys used for setting the temperature in the large digital display,
• Easy user calibration to in-house standards,
• Wide variety of tubes, plates and slides are accommodated by interchangeable blocks,
• Custom machining achieved by solid blocks,
• Block lifter included in every bath which helps the user easily to exchange blocks when they are even hot.

Specifications

• Controller:  PID digital microprocessor
• Aluminum alloy blocks, standard & customized types available,

* HEATING BLOCKS MUST BE ORDERED SEPARATELY

• Heating Chamber:  Molded aluminum alloy chamber
• Temperature Control Range:  5°C above ambient to 150°C (max. 200°C)
• Temperature Increments:  0.1°C
• Temperature Uniformity:  ±0.2°C (at 37°C)
• Operating Environment:  Ambient to 40°C

• Safety:
• Leakproof heating chamber,
• Over-temperature protection,
• SSR failure detection,
• Select input power option:  AC110 or AC220V, 50/60Hz.
• Optional RS232 data port available upon request (call for pricing),
• Independent dual temperature controls available upon request (call for pricing).

Optional Accessories

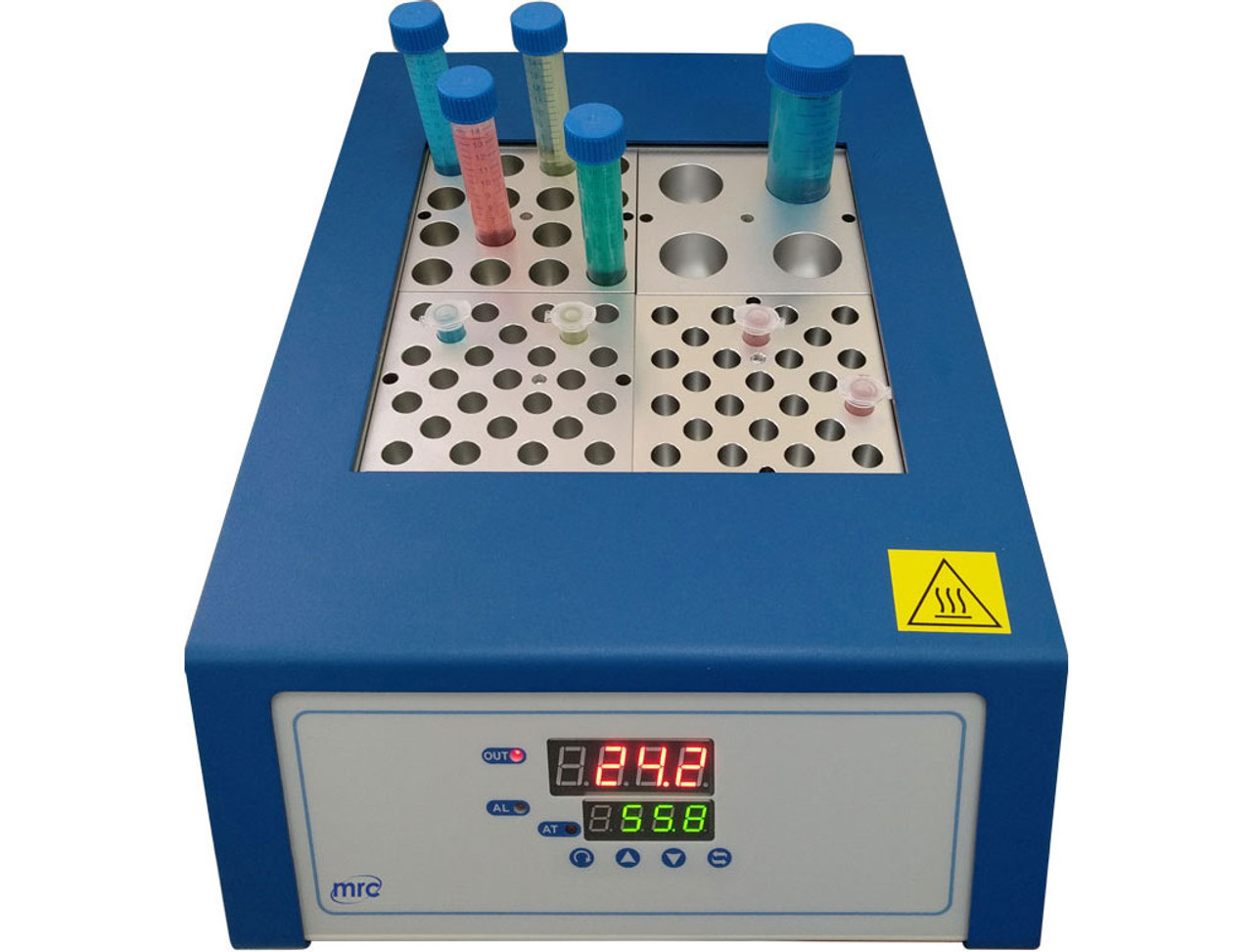

• Dry Blocks - Are series of blocks designed for use with Dry Bath Incubator DBD-004.

Literature

•  Operators Manual
