Product Description

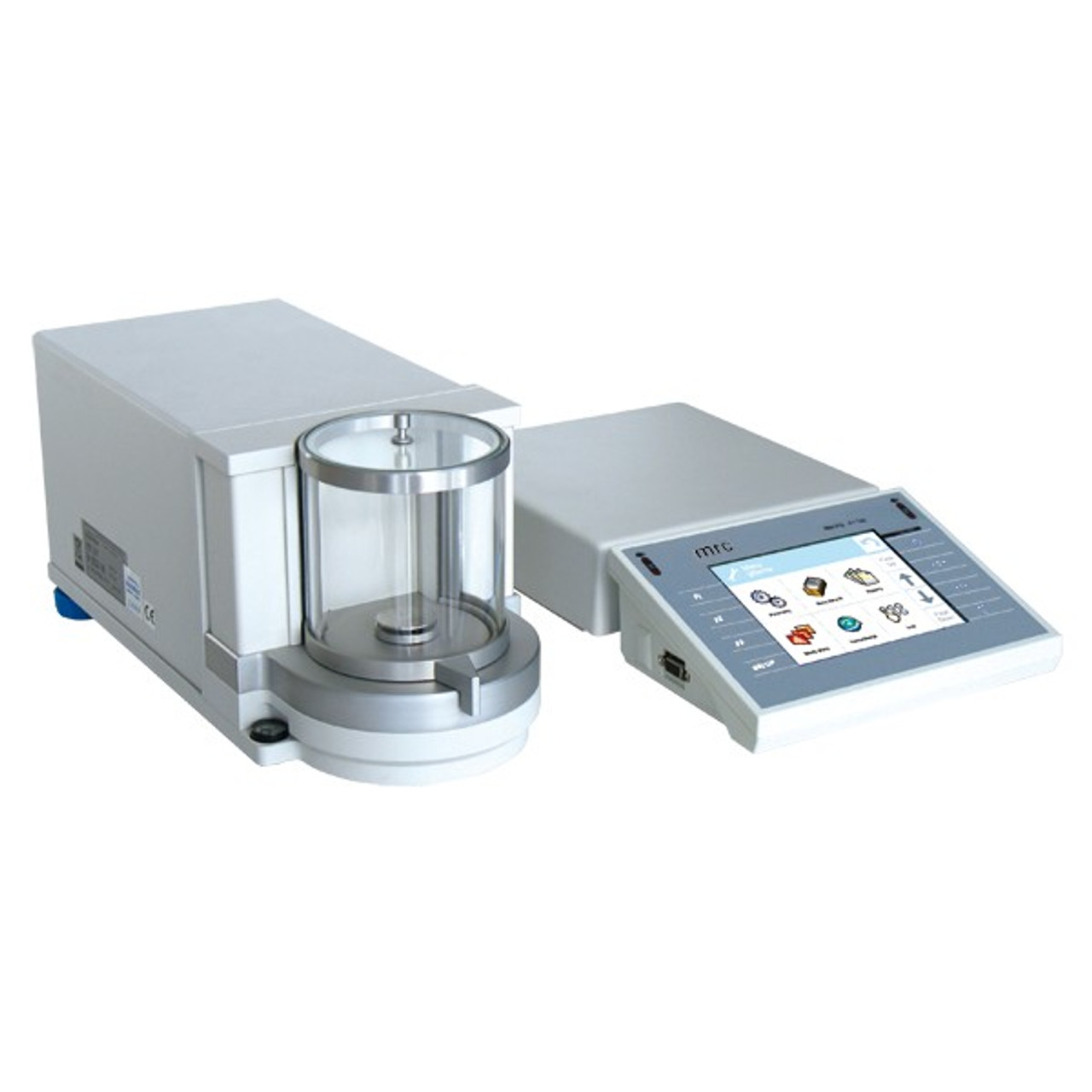

The MRC Labs part number MGB–2U is an ultra-micro balance designed to make high precision mass measurements of up to 2 grams. Internal calibration ensures high measurement reliability and accurate.
Applications
- Filling,
- Check weighing,
- Percentage,
- Statistics,
- GLP procedures.
Features
- Maximum capacity upto 2g,
- Readability of 0.001mg,
- Internal automatic calibration,
- Consists of two major parts kept in separate enclosures - an electronic system and a precise mechanical measurement system which helps to eliminate the temperature influence and separates from vibrations/shocks caused by users operating software,
- Made of glass and steel which eliminates the influence of electrostatics on the weighing process,
- Large 5.7” touch screen display.
Specifications
Model | MGB-2U |
Max Capacity | 2g |
Readability | 0.1μg |
Repeatability | 0.25μg |
Linearity | ±0.5μg |
Pan Size | ø16mm |
Weight Chamber Dimensions | ø90 x 90mm |
Stabilization Time | 10-20 secs |
Calibration | Automatic (internal) |
Working Temperature | +18° - +30°C |
Interface | RS 232, 2 x USB, Ethernet |
Power Supply | 230V / 110V AC |
Display | 5.7’’ touch screen |
Touch pad software controls
- PRINT function,
- TARE function,
- Opening weighing chambers
- Infrared proximity sensors,
- Sensors sensitivity adjustment,
- Electronic level indicator,
- ALARM function,
- Graphic level indicator,
- Programmable acceptable tilts.
Outer dimensions:
Also known as Sartorius MSA2.7S-000-DM and Cubis® Ultra-Micro.
Optional accessories
-
Anti-vibration table - SAL series table designed to perform accurate measurements, (Click here to order)
-
Printers - Dual direction thermal print with 8-point head, (Click here to order)
-
Printer - CLP Series are thermo transfer printers controlled with optical sensors, (Click here to order)
-
Computer software - P0199 is designed to collect the measuring data especially from MRC made scales, (Click here to order)
Also known as MRC MGB-2U or MRC MGB2U.
---
