Product Description

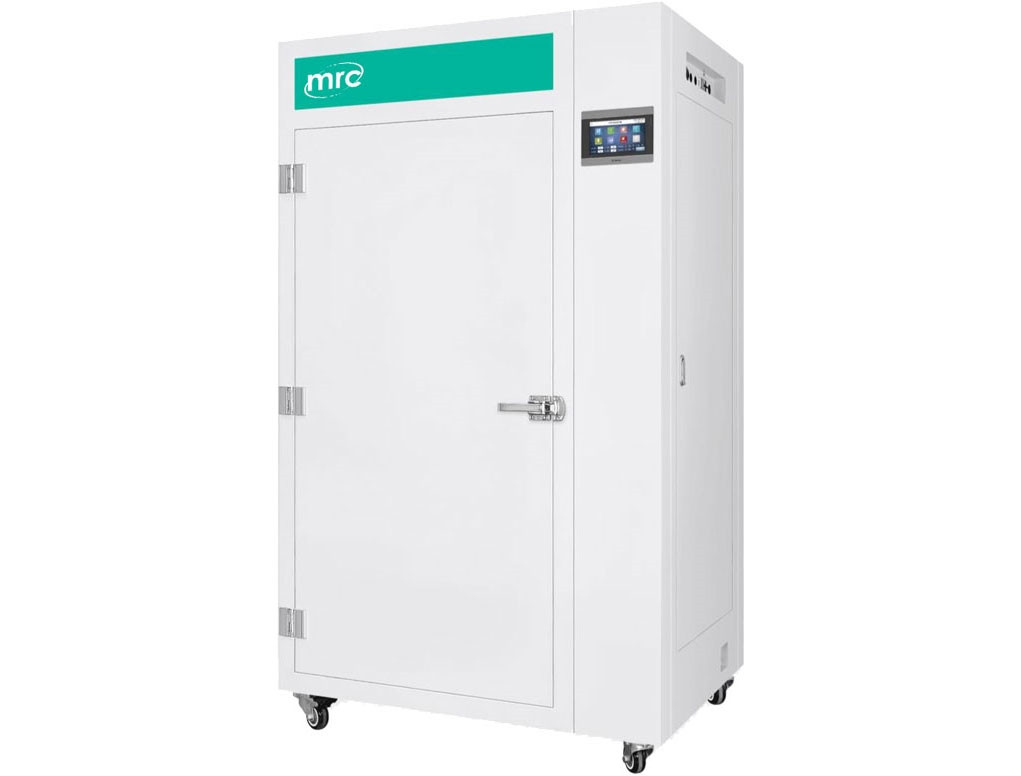

PGC-800HJC Plant Growth Incubator (≈790 L) — programmable temperature, humidity, and LED lighting for controlled plant research

The MRC PGC-800HC is a reach-in plant growth incubator designed for precise control of temperature, relative humidity, and LED light intensity in a compact footprint. Standard control spans approximately +37 °F to +113 °F (+3 °C to +45 °C) with optional low-temperature operation down to +14 °F (–10 °C). A 7-inch touchscreen controller simplifies day–night programming, data logging, and alarm management, while an integrated fresh-air system and optional CO₂ control support reproducible physiology studies. With 790 L (≈27.9 ft³) of growth volume, five modular shelves, and up to ~300 μmol·m⁻²·s⁻¹ LED intensity at 4 in (10 cm), the PGC-800HC gives university labs and core facilities a reliable platform for seedling development, stress assays, and multi-shelf horticulture workflows.

Applications

Plant Science & Agronomy

Controlled-environment growth for Arabidopsis, cereals, legumes, Solanaceae, and model crops; diurnal programming for photoperiod experiments; stress tests (heat/cold, high/low RH) with data-logged monitoring.

• Seed germination, early vegetative growth, and acclimation
• Photomorphogenesis and light-spectrum studies (optional multi-color LEDs)
• Drought/heat tolerance screens using programmable RH and temperature steps

Teaching & Core Facilities

Multi-course and multi-project use with role-based access, onboard data export (USB), and a fresh-air exchange setting that maintains stable chamber conditions while supporting ambient gas refresh.

Physiology & Environmental Stress

Fine-grained control for circadian and stress-response work. Optional CO₂ control (to 2,000/5,000 ppm) and extended low-temperature range enable broader protocol coverage.

Features

• Programmable day–night control: Temperature, RH, and lighting set on a 24-hour schedule via 7″ touchscreen; multiple timelines with one-minute resolution.
• Stable environment, research-grade sensing: Temperature fluctuation and uniformity typically ±0.5 °C with a Vaisala HMP60 sensor for temp/RH measurement.
• LED lighting system: Standard ~300 μmol·m⁻²·s⁻¹ at 4 in (10 cm); optional higher intensities and multi-color spectra (e.g., blue/red/far-red combinations).
• Humidity control built-in: Standard 50–90% RH (lights on/off); optional 30–99% RH for high-humidity germination and growth studies.
• Fresh-air exchange: Adjustable exchange supports chamber stability and gas refresh; complements optional CO₂ control.
• Data logging & alarms: Onboard graphing, USB data download, and a comprehensive alarm suite with audible/visual indicators and history.
• Capacity and ergonomics: 790L (≈27.9 ft³) growth space with five modular shelves and a maximum plant height of 59.8 in (152 cm).
• Utilities & efficiency: Universal 110–277 VAC, 50/60 Hz input; peak power ≈3.3 kW; castors for easy relocation.

When is a reach-in growth chamber preferred over alternatives? Compared with benchtop incubators, the PGC-800HJC offers greater volume, tighter RH/light control, and higher PAR. Compared with walk-in rooms, it delivers faster install, lower operating cost, and simpler scheduling for small-to-mid batch experiments.

Specifications

Optional Accessories

• Low-temperature package (–10 °C lights-off)
• Extended humidity package (30–99 %RH)
• High-intensity LED packages and multi-color spectra (blue, red, far-red combinations)
• CO₂ control module (to 2,000 ppm or 5,000 ppm)
• Additional shelves and replacement LED panels [NOTE TO REVIEW: confirm availability]
• Validation/start-up documentation set [NOTE TO REVIEW]

Documentation

• Operator’s Manual – PDF
• Technical Datasheet – PDF

FAQs

• Q: What environmental ranges does the PGC-800HJC cover?

  A: Standard control is approximately +37 °F to +113 °F (+3 °C to +45 °C) and 50–90 %RH. Options extend to –10 °C lights-off and 30–99 %RH.

• Q: How is PAR (light intensity) specified?

  A: Standard LED output is ~300 μmol·m⁻²·s⁻¹ measured at 4 in (10 cm) from the light source. Actual canopy PAR depends on shelf spacing and plant height.

• Q: Can I add CO₂ control?

  A: Yes. Factory options allow control to 2,000 ppm or 5,000 ppm.

• Q: Does the controller log data?

  A: Yes. Temperature/RH/light trends are logged locally and can be downloaded via USB. Alarm history is also stored for review.

• Q: What utilities are required?

  A: 110–240-277 VAC, 50/60 Hz, 15A-30A circuit. Peak power draw is about 3.3 kW.

• Q: How much growth area and height are available?

  A: Growth volume is 27.9 ft³ (790 L) with five shelves and a maximum plant height of 59.8 in (152 cm).

Warranty

Standard manufacturer warranty is 12 months, includes parts and labor for defects in materials and workmanship during normal use.  For warranty support or questions, contact LabgearUSA customer service with your order number and chamber serial number.

Ordering

This is a built to order Special Order item - non-returnable without manufacturing defect.

Configure the chamber to your protocol: select standard or low-temperature package, standard or extended RH range, LED spectrum and intensity, and optional CO₂ control. Lead time varies by configuration and current production load.

• Add to Cart for a fast quote and order processing.
• Contact us for stock check, delivery scheduling, and assistance choosing LED intensity and shelf layout.
• Ask about education/government pricing and multi-unit deployment plans.

---
