Scilogex MS7-H550-Pro 7"x7" LCD Digital Hotplate Stirrer

  • Scilogex MS7-H550-Pro 7x7 LCD Digital Hotplate Stirrer

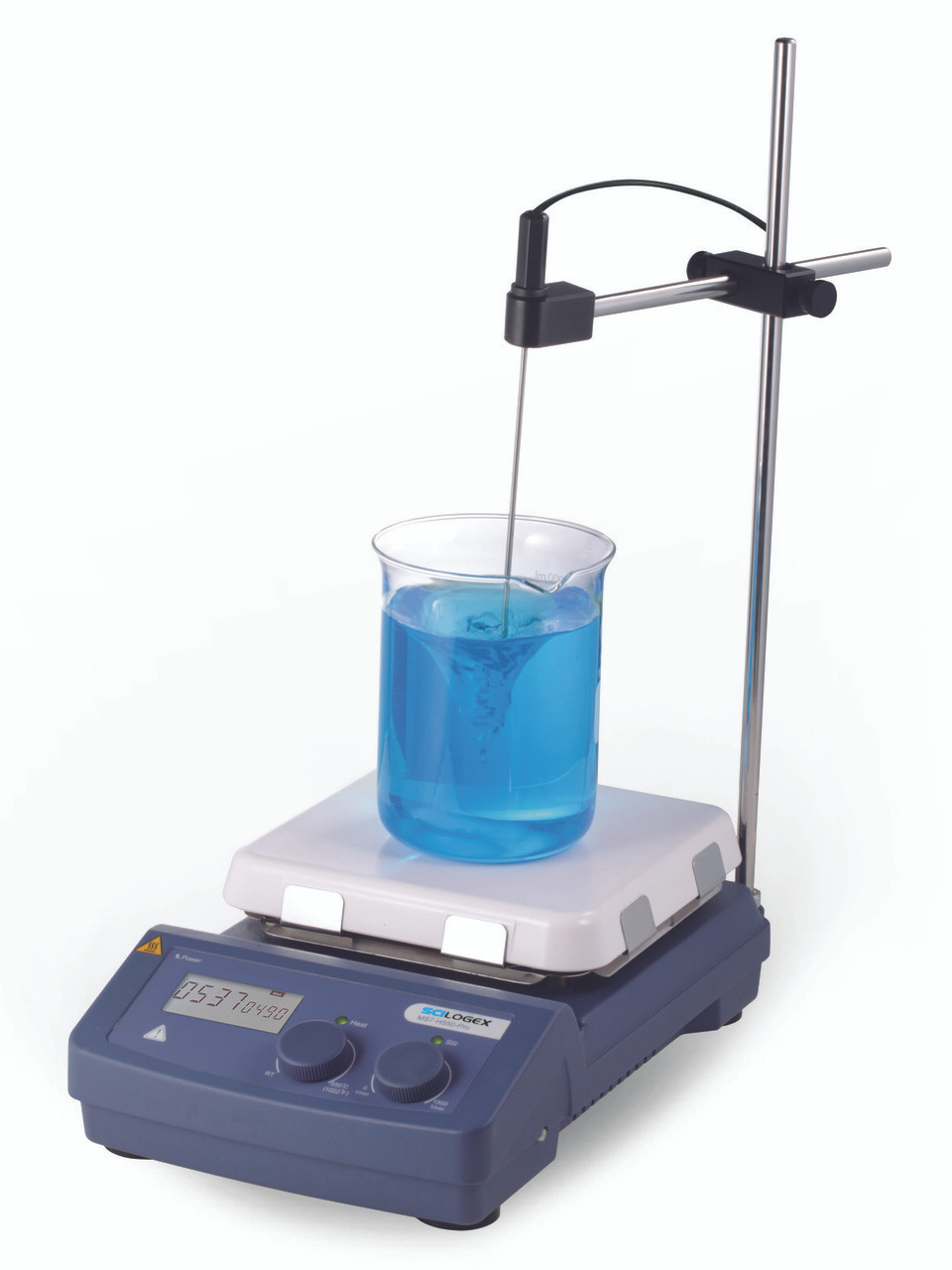

  • Scilogex MS7-H550-Pro 7x7 LCD Digital Hotplate Stirrer with PT1000 Sensor, Sensor Support Stand & Clamp

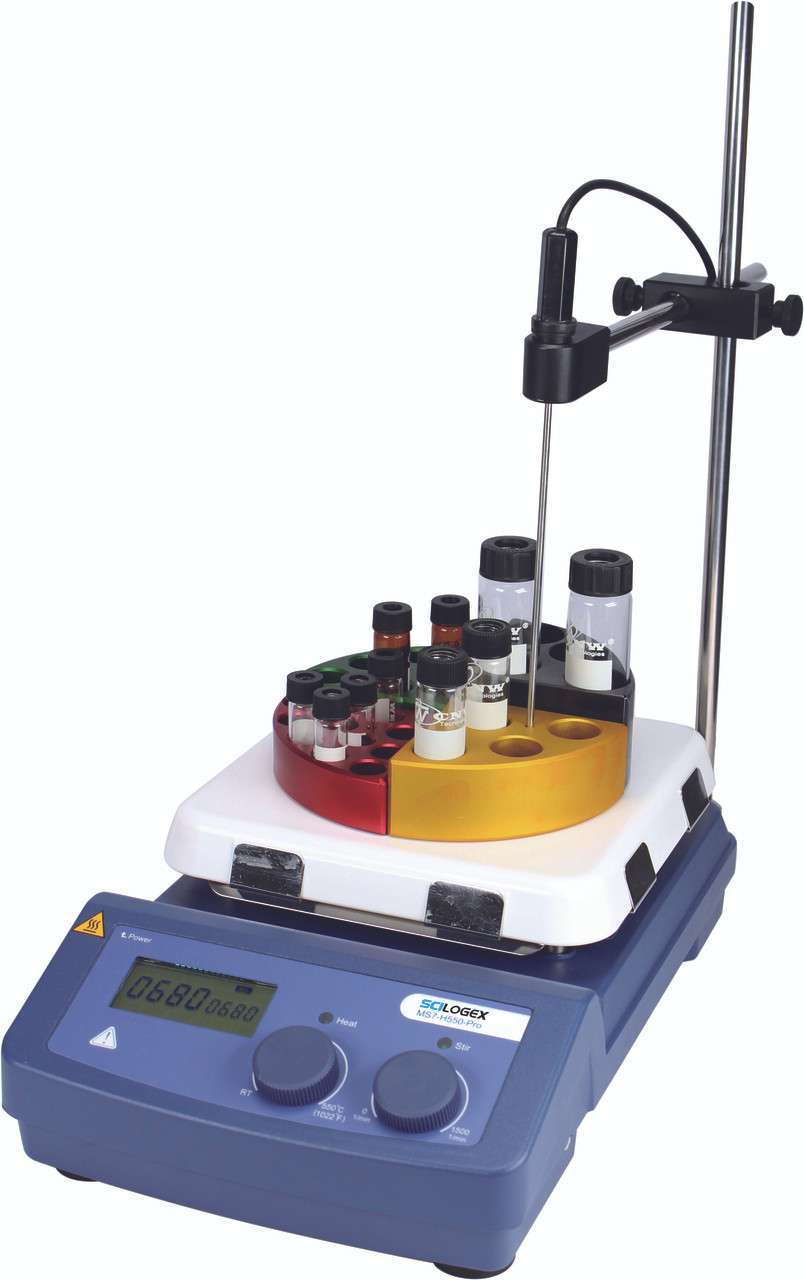

  • Scilogex MS7-H550-Pro 7x7 LCD Digital Hotplate Stirrer with Reaction Blocks
Price:
$622.97
SKU:
SLGX 81322300
Brand:
Weight:
1.00 LBS
Shipping:
Calculated at checkout


Product Description

Scilogex MS7-H550-Pro 7"x7" LCD Digital Hotplate Stirrer is one of the most technically advanced hotplate-stirrers in the marketplace. It has independent back-lit LCD displays for both heat and stirring functions and PID technology to control temperatures to +/-1ºC accuracy. It also incorporates a DC brushless (spark free) motor for extremely long life and excellent performance.

Features

  • Easy-to-read independent back-lit LCD displays for heat and stirring,
  • Heat only, stir only or heat and stir together functions,
  • RS232 for remote control,
  • Low temperature stability,
  • Electronic speed control for constant speed even during changes in load,
  • Maintenance free DC brushless motor for long life,
  • High magnetic adhesion,
  • Hot warning above 50°C.
  • cTUVus certified,
  • 2 year warranty.

Specifications

Model MS7-H550-Pro
Temp range Ambient - 550°C
Speed range 100-1500rpm
Temp accuracy at plate ±1(100°C)
Temp control accuracy of liquid using PT- 1000 Sensor ±0.2°C
Temp increments 1°C
Heat output 1000W
Max. Stirring Qty. 20 Liters
Heating rate (1 liter water) 6 degrees K/min
Speed/Heat display LCD (backlit)
Motor type DC Brushless
Plate size 7" x 7" sq.
Plate material Ceramic-Glass
Dimensions 14"L x 8.5"W x 4.5"H
Weight 11lbs
Voltage 110Volts, 50Hz/60Hz
