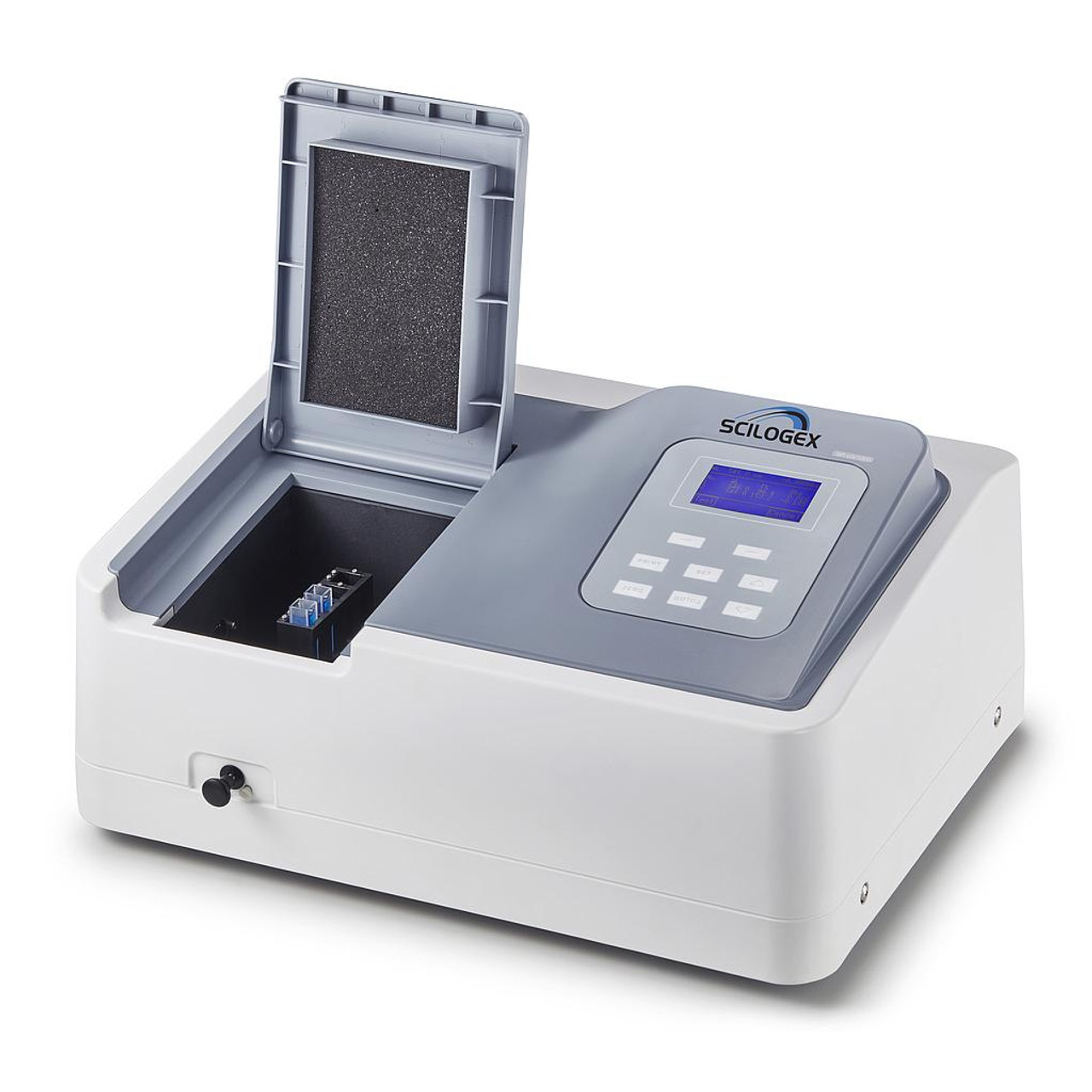

Scilogex Spectrophotometer with Tungsten Lamp

Product Description

The Scilogex spectrophotometer, equipped with a tungsten lamp, is an indispensable instrument regularly employed in colleges, universities, and research institutes. It serves various quantitative analysis purposes in fields like biotechnology and quality control of new materials, including the measurement of bacterial density. This instrument is highly regarded for its high resolution, exceptional performance, and excellent stability.

Product Features

• User Friendly Operation and Information Rich LCD Display: The large 128 x 64 dots, backlit LCD screen with adjustable brightness control displays a large array of data also in graphical format providing quantitation, photometry and time scan.

• Memory Storage: The System can save the test results, up to 200 groups of data and 200 standard curves in the RAM memory.

• Data can be restored after a sudden power failure.

• Auto setting wavelength: To set wavelength automatically to calibrate the system through arrow keys to avoid operation errors.

• Automatic Switching: Tungsten & Deuterium lamps switching is automatic. Selectable from a wavelength range of 200 to 1000nm.

• PC control through application software (sold separately): The spectrophotometer is fully equipped and capable of executing all functions in stand-alone mode. The optional application software 'Wave Professional' provides PC control for the spectrophotometer (through the built-in USB port), apart from other functions such as spectrum scan, Time scan (kinetics), multi-wavelength scanning & Nucleic Acid / Protein measurement.

• Large sample compartment: To accommodate 5–100mm path length cuvettes with optional holders. A variety of optional accessories are available.

• Can be used with films 1-3mm using 18900339 holder,

• cTUVus & CE Certified.

Specifications

• Optical System: Single Beam,

• Light Source: Tungsten lamp,

• Photometric Range: -0.3 - 3.0A, 0 - 200%T,

• Stability: ≤0.002 A/h @ 500 nm,

• Stray Light: ≤0.05%T @ 360nm,


• Sample Compartment: 4-position, 10mm path length. Cuvette size 10 x 10 x 4.5mm (3.5ml),
• Display: LCD,

• Output: USB Port & Parallel Port (Printer),

• Power: 110/220VAC, 50/60Hz, 120W,

• Dimension(L×W×H): 490×360×210mm,

• Weight: 10kg / 22lbs,

P/N	SLGX 401021010009	SLGX 401022010009
Model	SCI-V1000	SCI-V1100
Spectral Bandwidth (nm)	4	2
Wavelength Range (nm)	325-1000	320-1100
Wavelength Accuracy (nm)	±2	±0.5
Wavelength Repeatability (nm)	≤1	≤0.3
Photometric Accuracy	±0.003 A @ 0.5 A,±0.006 A @ 1.0 A,±0.5%T @ 100%T	±0.002 A @ 0.5 A, ±0.004 A @ 1.0 A, ±0.3%T @ 100%T
Photometric Repeatability	≤0.0015 A @ 0.5 A,≤0.003 A @ 1.0 A,≤0.25%T @ 100%T	≤0.001 A @ 0.5 A, ≤0.002 A @ 1.0 A, ≤0.15%T @ 100%T
Spectrum scanning	NA	2800nm/min fastest speed
