    Product Description

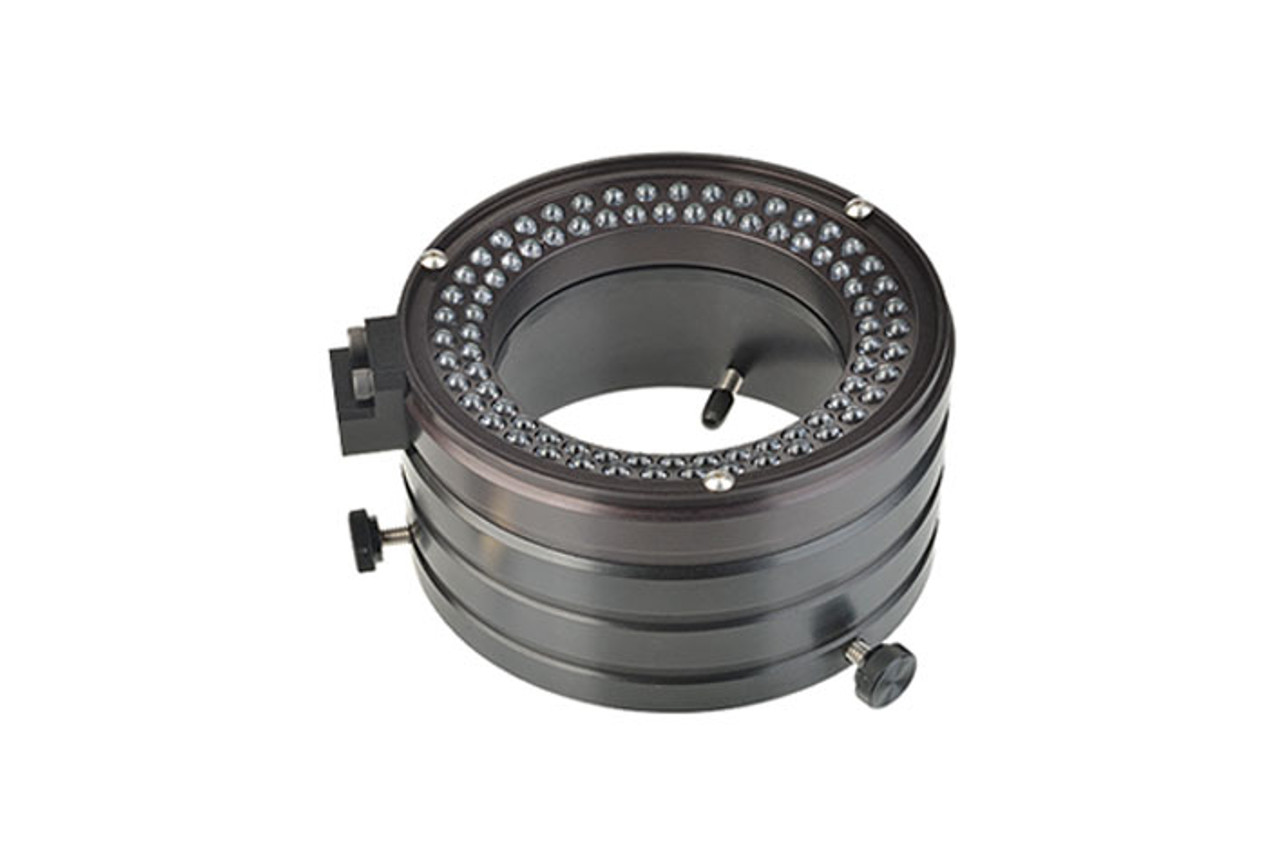

    Techniquip's Proline 882 Ringlight is durable, reliable, compact, extremely bright, and provides the best value for illumination with Nikon's 82mm industrial microscope. It's ideal for mounting on the large diameter optics and is configured with an inner and outer ring populated with 80 high quality, extremely bright LEDs.



    Techniquip P882 80 LED Ringlight



    The dual ring dimming controls provide maximum color stability at all diming levels and LED's are set at different angles to create uniform illimunation across a wide range of working distances.

    Applications

    • OEM optical inspection equipment,
    • semiconductor fabs,
    • machine vision,
    • laboratories,
    • Any “mission critical” optics illuminaton applications.

    Features

    • Fits 82mm (3.23") optics and lenses, and specifically designed for NIKON's new objective lenses,
    • High intensity operation over full lifetime,
    • Dual 40 LED Rings with 8 quadrant controls,
    • Precision aligned, heatsink mounted LEDs for uniform illumination over target area,



    Proline 40 Raytrace

    • Daylight color output,
    • Precision machined and hard anodized aluminum alloy LED ring,
    • Remote on/off, segment and dimming controls,
    • Made in the USA.

    Specifications

    • Rated life time of over 50000 hours,
    • Constant current LED driver to minimize intensity decline over the life of product,
    • Dual Dimming controls - inner and outer rings,
    • Dimming of 15% to 100% without color shift effects,
    • Includes eight segment LED controller with dual dimming controls. Uses 8 enable buttons for 4 segments per 40 LED ring (90 degrees/section, 10 LEDs),





    • Working distances of 3.5" to 5" without center shadow, with ~3.5" ideal working distance for excellent uniformity and high intensity, with short working distance version for working distance under 3.5",

    Illuminance

    Footcandles (lumens/ft2)

    Lux   (lumens/m2)
    Illuminance @ 3.5" 4280 46100
    Illuminance @ 4" 5300 57000
    Illuminance @ 4.5" 5800 62400
    Illuminance @ 5" 5700 61400



    • Ringlight ID: 82mm / 3.2 inches,
    • Outside Diameter: 105mm / 4.1 inches

    Techniquip Proline P882 Dimensions

    • Interconnect cable: HDMI, 6ft long,
    Techniquip P882 Proline 80 LED Ringlight
    • Soft tipped thumbscrew mounts for secure attachment without damaging optical equipment,

    • Power consumption of 18 watt,
    • Standard wall convertor power supply for 100-240VAC, 50/60Hz, with options for wide range of international power plugs using desktop power convertor.

    Options

    • Option for short working distance version for <2.5" target area distance,
    • No Segment Control (eliminate buttons),
    • Options for Cool White (4000K-4900K), Warm White (2750K-3400K) or UV output (365nm), (IR, custom wavelengths, and mix also available as special order.),
    • Option for ESD compliant, incorporating a tethered coil grounding strap with spring clip for direct connection to most ESD pads, aluminum alloy controller housing, proprietary antistatic finish on controller housing and LED ring, and a shielded cable, making it ideal for static sensitive operating environment,

    Techniquip P866 with EDS



    • Option for addition of Polarizer/Analyzer Filter Kit for improved specular finish inspections,
    • Ring Adapters available for all major brands of stereo microscopes,

    Microscope ADAPTERS for fluorescent ring lights; mount the Techniquip ring light systems to all makes and models of microscopes. Precision machined anodized aluminum.



    ---

    Other Details

    Techniquip warrants that goods sold will be free from manufacturing defects in materials and workmanship for one year from the date of sale to the original purchaser. This warranty does not apply to goods which have been subject to abuse, misuse, neglect, improper installation or alteration (other than by Techniquip or its authorized representatives) after delivery to the carrier for shipment to the purchaser. EXCEPT AS EXPRESSLY SET FORTH IN A WRITING DELIVERED BY TECHNIQUIP TO THE PURCHASER, TECHNIQUIP MAKES NO WARRANTIES TO THE PURCHASER, WRITTEN OR ORAL, EXPRESS, IMPLIED OR STATUTORY, IN ANY MANNER OR FORM WHATSOEVER, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR USE OR PURPOSE, WHICH ARE HEREBY EXPRESSLY DISCLAIMED. Other than specific warranty durations stated in individual product specifications, Techniquip makes no warranty as to the useful life of the goods. Upon request, the purchaser shall return goods to the original distributor or Techniquip location for verification of the warranty as set forth in this Agreement. In the event Techniquip determines that the warranty is applicable to any goods, Techniquip shall elect, at Techniquip’s sole option, to provide as the purchaser’s sole remedy either: 1. Replace with identical, improved or upgraded product of same function, or 2. Repair product to specification functionality, or 3. Issue to the original purchaser a refund or credit for an amount not to exceed the original purchase price paid by the original purchaser for the affected goods. Techniquip shall have no liability with respect to warranty claims made by the purchaser more than one year after Techniquip’s sale of the goods involved to the purchaser. In no event shall Techniquip be liable to the purchaser for any special, incidental or consequential damages.
