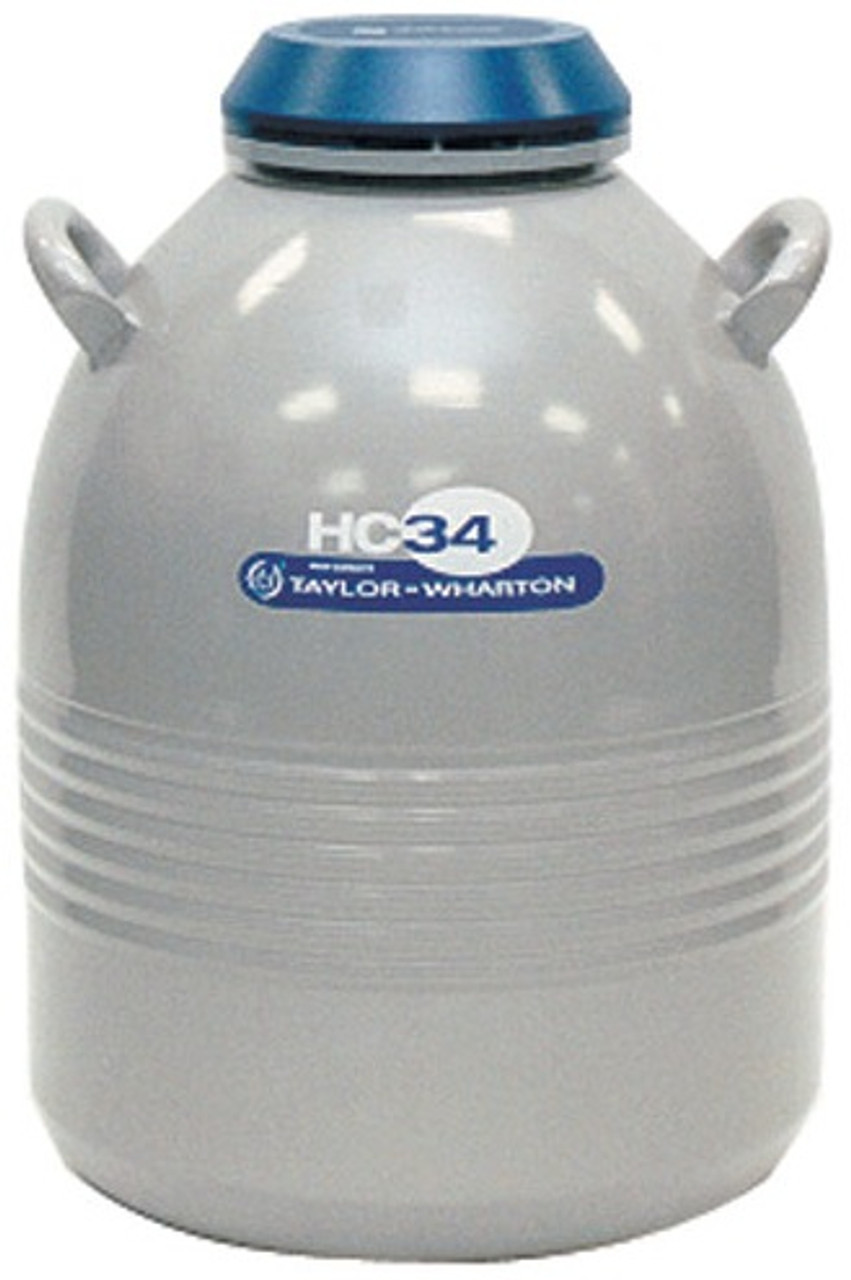

Ic Biomedical HC Series Cryogenic Refrigerator

Price:

$1,612.97

Brand:

IC Biomedical

Weight:

43.00 LBS

Shipping:

Calculated at checkout

Product Description

The HC Series refrigerators are designed for storing large quantities of a variety of materials at cryogenic temperatures. Temperatures generally range between -196°C at the liquid surface and -190°C at the canister top.

Features

Rugged construction, ribbed high strength aluminum body, magniformed neck tube design and durable paint system,
Large storage capacity,
Versatile storage system - convenient canister index locating ring and tapered internal spider,

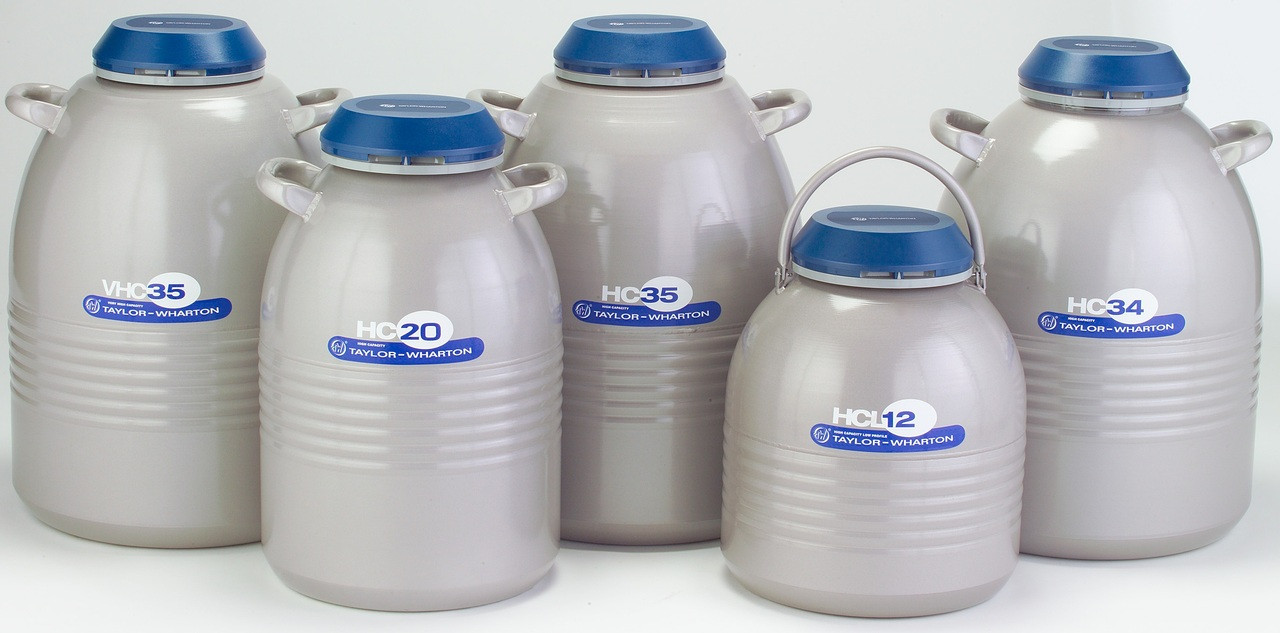

5 different models providing holding times and capacities to fit a variety of storage needs,
Models HC20, HC34, HC35 and VHC35 are designed for storage of samples in vials or straws,
Samples (1.2 or 2.0mL vials) are held on canes stored in canisters. Straws can be stored in goblets in canisters,
For sample protection Cryo-Sentry low liquid level alarms are available for use with the HC20, HC34, HC35 and VHC35 models,
All units are supplied complete with canisters and necktube core,
Roller bases are available for all models,
Superior vacuum performance with super insulation provides maximum holding times,
Three year warranty on vacuum.

Specifications

MODEL	HCL12	HC20	HC34	HC35	VHC35
Static Holding Time (Nominal Days)	60	87	200	130	130
Working Time ( Nominal Days)	37	54	125	81	81
Normal Evaporation rate (liters/day)	0.20	0.23	0.17	0.27	0.27
Capacity LN2 (Liters)	12	20	34	35	35
Weight Empty (kg)	9.8	12.0	16.1	17.7	17.2
Weight Full (kg)	19.5	28.2	43.6	46.0	45.5
Neck Diameter (mm)	91	91	91	119	119
Overall Height (mm)	482	615	668	681	681
Overall Diameter (mm)	396	396	478	478	478
Vial Capacity
Number of Canisters	6	6	6	10	6
Canisters Dimensions	70x127	70x279	70x279	67x279	94x279
Number of 1.2 ml. & 2.0 ml vials (5/cane)	N/A	570	570	850	1050
Number of 1.2 ml. & 2.0 ml vials (6/cane)	N/A	684	684	1020	1260
Number of 1/2 cc straws - (10 per cane)	N/A	1850	1850	2800	3000
Number of 1/2 cc straws - Bulk (1 level)	2940	N/A	N/A	N/A	N/A
Number of 1/2 cc straws - Bulk (2 levels)	N/A	5880	5880	9800	9900
7^th Canister	N/A	N/A	N/A	N/A	R036-9C27
Roller Base	8018-8C00	8018-8C00	R033-8C00	R033-8C00	R033-8C00
Cryo-Sentry Level Alarm	N/A	R034-8C15	R034-8C15	R037-8C15	R036-8C30

Optional Accessories

Replacement Necktube Core - Use only the necktube core provided with the unit or the manufacturer's recommended replacement part.

Replacement Cryostorage Canister, 5" & 11" - Extra, additional sizes and replacement storage canisters for Taylor-Wharton Cryostorage Dewars.

Cryo-Sentry Level Alarms - Cryo-Sentry Low-Level Alarms provide protection for valuable materials which are stored in infrequently used LN₂ refrigerators.

Roller Bases - Ball-bearing swivel casters provide convenience and portability within a working area where frequent container movement is necessary or desirable.

LN₂ Withdrawal Device - Employ pressure relief protection that is properly designed for the inner vessel of these dewars.

Liquid Level Measuring Rod - The liquid level in the dewar can be determined by measuring with a dipstick.

LN₂ Dipper - A safe and convenient dipper for removing small quantities.

---

Warranty Information

Manufacturer's Warranty:
The manufacturer warrants its products to be free of detects in materials and workmanship for the stated period from date of original purchase invoice. All warranties or merchantability and fitness for any purpose and all other warranties, expressed or implied, except those expressly set forth herein, are deemed waived and excluded. Manufacturer's duty under the warranty is limited to replacement and/or repair of the defective part at their exclusive option. Seller shall not be liable for any expenses or damages incurred by the purchaser except as expressly set forth herein, and in no event shall seller or manufacturer be liable for any special, incidental or consequential damages of any kind. This warranty does not supersede any statutory rights that may be available in certain countries. The foregoing manufacturer's warranty of shall be voided, and of no force and effect if buyer has modified or damaged the product.
