MRC Labs part number BWY series precision balances are designed for weighing loads from 1kg to 120 kg depending upon the models. Ideal for applications that demand simple operation and maximum automation of weighing process.

 Applications

• Counting pieces,
• Check weighing,
• Results in percentage,
• Formulation,
• Statistical calculation,
• Counting pieces.

Features

• Equipped with new electronic modules,
• 5.7” color graphic display covered and operated using the touch screen,
• Optical racks for the under-hook weighing,
• Detachable indicator from weighing chamber which significantly reduces the shocks & vibrations during weighing heavy loads,
• USB port for data storage and data exchanges between balances, import/ export balance settings, databases..etc.

Specifications

• Large 5.7” touch screen display,

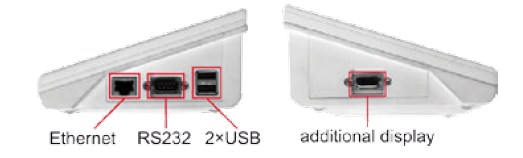

• Digital Interface:  2xUSB, RS 232, Ethernet, 4in/4out,
• Excellent IP rating of IP 54,
• Power supply of 230V/11V AC or 120V/11V AC required.

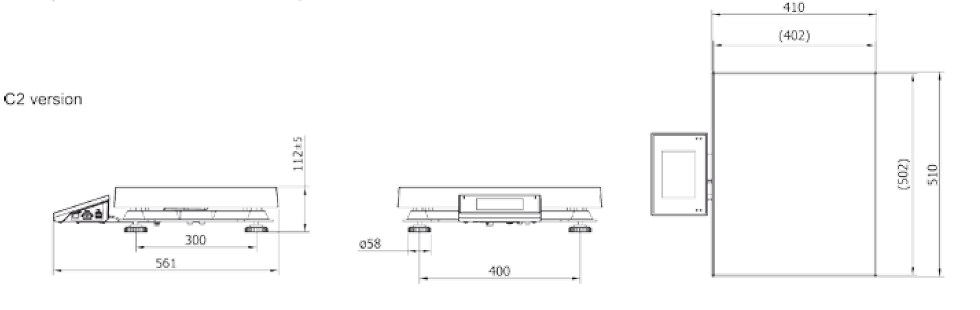

Outer dimensions:

Touch pad software controls

• PRINT function,
• TARE function,
• Infrared proximity sensors,
• Sensors’ sensitivity adjustment,
• Electronic level indicator,
• ALARM function,
• Graphic level indicator,
• Programmable acceptable tilts.

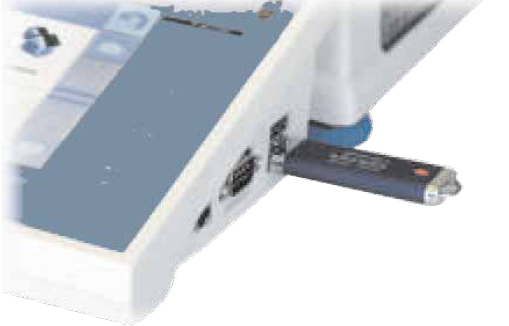

 Data exchange through USB storage devices

• Updating balance software,
• Exporting weighing data,
• Exporting/importing databases,
• Exporting/importing balance settings,
• Exchanging data between the balances.

 Optional Accessories

• Density determination kit-P0180 specially to make calculations simple, (Click here to order)

• Computer software-P0199 is designed to collect the measuring data especially from MRC made scales, (Click here to order)
