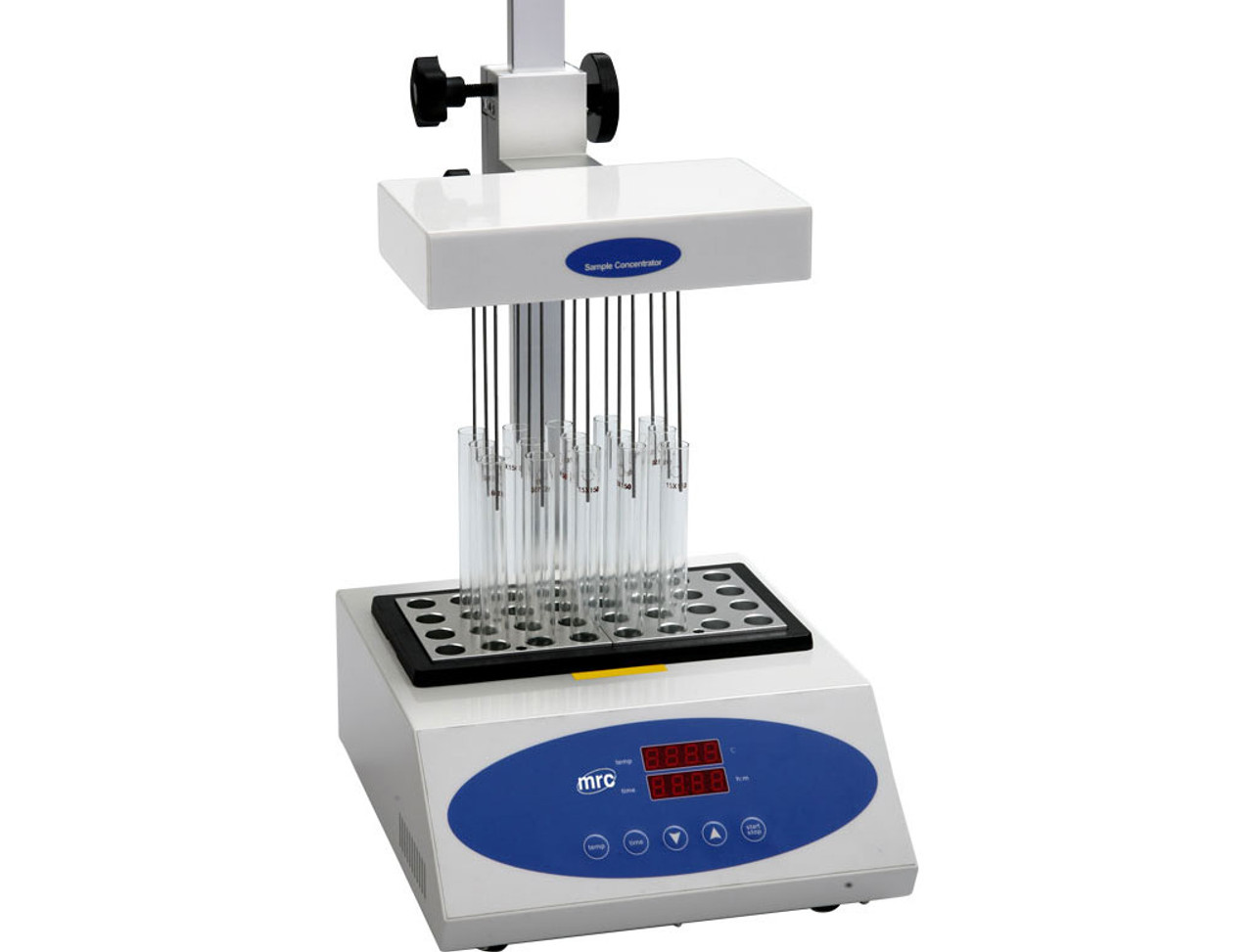

MRC Labs DBG-002 Sample Concentrator is a sturdy instrument with base, stand assembly, sample holder and gas distribution system for safe and easy sample concentration under gas cover.

Applications

• Sample preparation,
• Drug screening,
• Hormone assays,
• Chromatographic analysis,
• Scintillation counting.

Features

• Range of blocks available for holding samples for a variety of applications, sizes and capacities,
• Gas passed through manifold with individual gas injection tubes raised or lowered to the correct height, depending on test sample tube size and solvent volume,
• Rapid evaporation of the solvent achieved by blowing gas onto the surface of the solution by needles or gas pipettes,
• Wide range of temperature control and high precision,
• Large number of samples blown at a single time,
• Adjustable gas flow,
• Safe, reliable, easy to use operation.

Specifications

• Standard temperature control: Rm Temp+5°C - 150°C
• Distribution manifold at 5 to 10 psig, adjustable
• Timer: 1min - 99hr59min
• Display: LED
• Temperature control accuracy:
• 0.5°C @40 - 100°C
• 1°C @100 - 150°C
• Display Accuracy: 0.1°C
• Heating Time: ≤30min, 40°C-150°C
• Available with a variety of heating blocks for a wide range of applications:
• Standard Blocks: 2/system
• 96well PCR Block/Microplate Block:  1/system

• Nitrogen Consumption: 0-10L/min
• Dimensions (L×W×H): 280×240×110 mm
• Needle Length: 150mm

Accessories

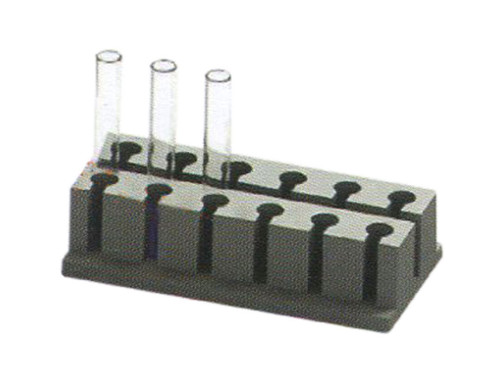

• Variety of Blocks: MRC 301-01081-01 to MRC 301-01081-20 - A variety of heating blocks are available for the MRC Labs DBG-002 Gas Concentrator. Two Blocks are required for the DBG-002 Sample Concentrator, unless otherwise indicated. (Additional $299.97 per block)

• Pressure & Flow Control Valve (Additional $349.99).

Literature

• Click Here To Download The Operations Manuel

---
