Scilogex Overhead Stirrers

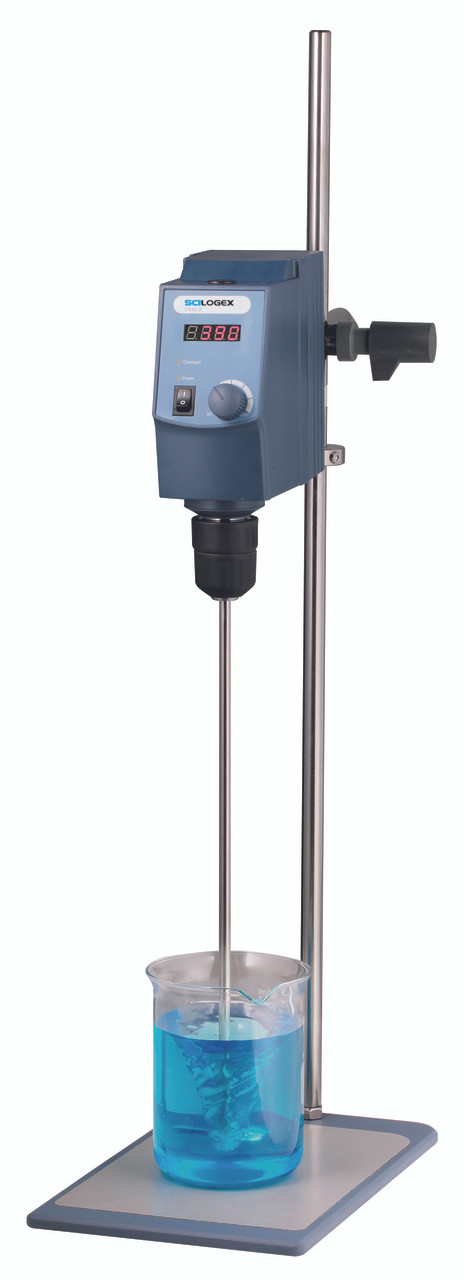

  • Scilogex LCD Digital Overhead Stirrer
  • SCILOGEX SCI40-Pro (40L) LCD Digital Overhead Stirrer 50-2200rpm.
  • Scilogex LED Digital Overhead Stirrer
  • SCILOGEX SCI20-S (20L) LED Digital Overhead Stirrer 50-2200rpm
Price:
$597.97
Brand:
Weight:
11.00 LBS
Shipping:
Calculated at checkout


Product Description

Scilogex Overhead Stirrers are very efficient for the safe and effective mixing of high viscosity liquid or solid liquid. The LCD models allow the user to set the required torque and speed, and observe the true values of the torque and speed on an easy-to-read LCD display. The LED model provides a precise display of the actual speed which is selected via an analog dial.

 Applications

  • Chemical synthesis,
  • Pharmaceutical,
  • Physical and chemical analysis,
  • Petrochemical,
  • Cosmetics,
  • Health care.

Features

  • High reliability, long continuous service, outstanding performances,
  • Cover the speed range from 0 to 2200rpm, the speed is accurate and controlled,
  • Brushless DC motor drive, low noise and maintenance free,
  • Overload protection - motor will automatically stop in case of continuous overload,
  • 2 year warranty.

Specifications

 Model

SCI40-Pro

SCI20-Pro

SCI40-S

SCI20-S

Max stirring quantity (Liters H20)

40

20

40

20

Motor rating input (W)

120

60

120

60

Motor rating output ( W)

100

50

100

50

Voltage (VAC)

100-240

100-240

100-240

100-240

Frequency (Hz)

50/60

50/60

50/60

50/60

Power (W)

130

70

130

70

Speed range (rpm)

50-2200

50-2200

0-2200

0-2200

Speed display accuracy (rpm)

±3

±3

N/A

N/A

Speed display

LCD

LCD

LED

LED

Speed display resolution(rpm)

±1

±1

±1

±1

Max_ torque (Ncm)

60

40

 60

40

Torque display

LCD

LCD

N/A

N/A

Viscosity max. (mPas)

50000

10000

50000

10000

Chuck range diameter (mm)

0.5-13

0.5-13

0.5-13

0.5-13

Dimension(W x H x D) (mm)

83 x 220 x 186

83 x 220 x 186

83 x 220 x 186

83 x 220 x 186

Weight (kg)

 3.6

 3.6

 3.6

 3.6

Protection class acc. to DIN/EN 60529

IP42

IP42

P42

P42

Temperature (°C)

5-40

5-40

5-40

5-40

Permission relative humidity (%)

80

80

80

80

Remote control (RS232 interface)

Yes

Yes

N/A

N/A

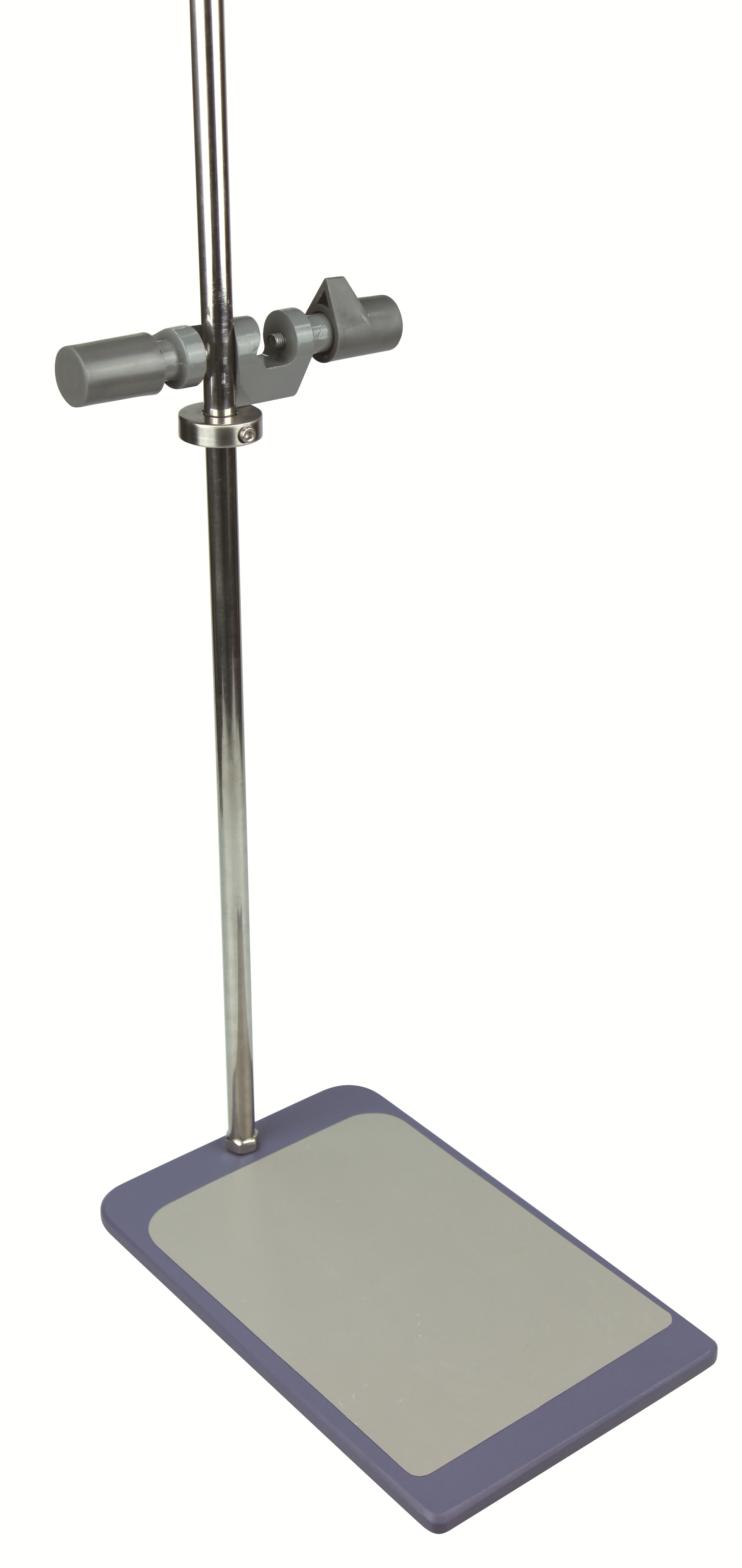

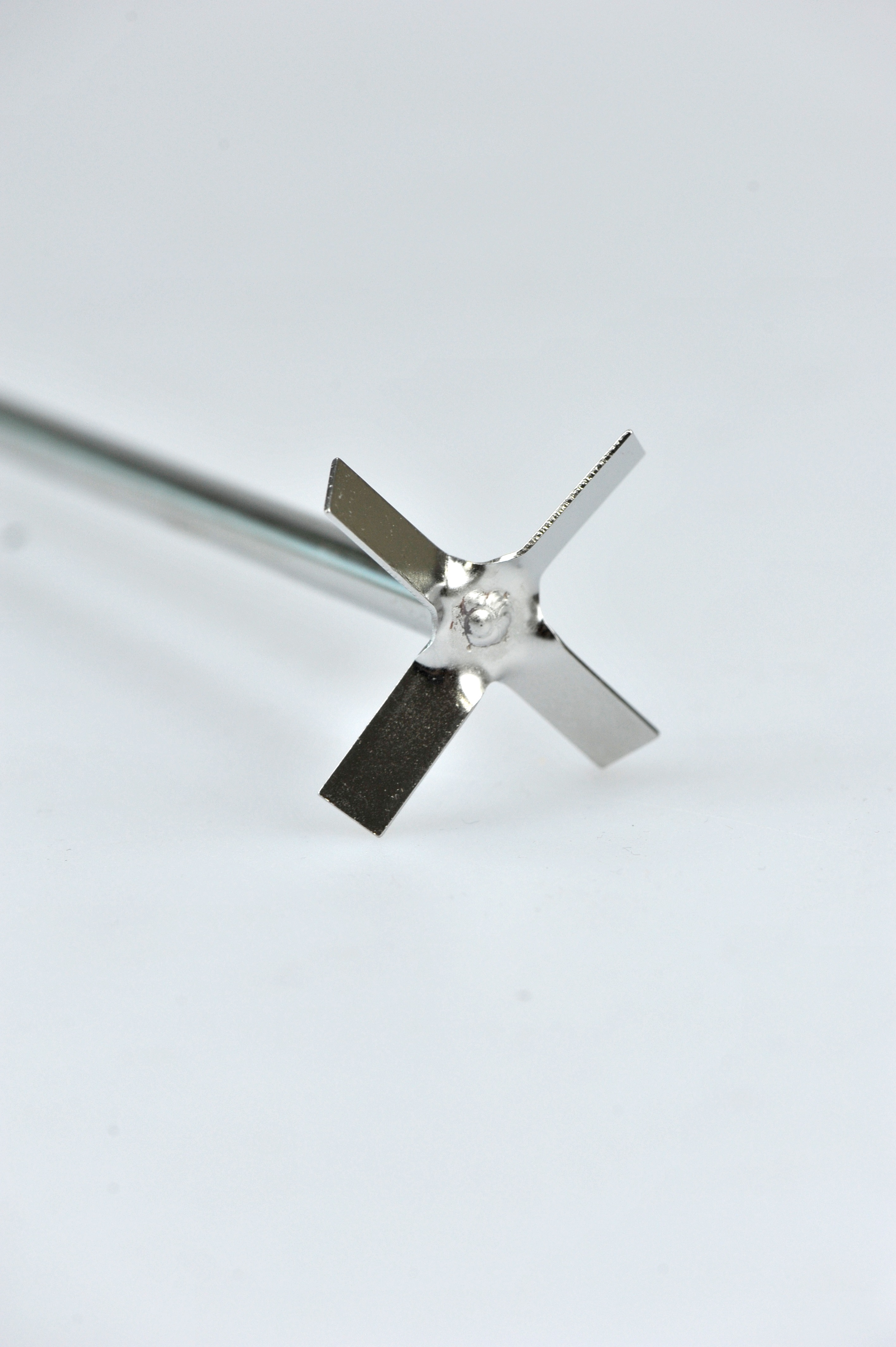

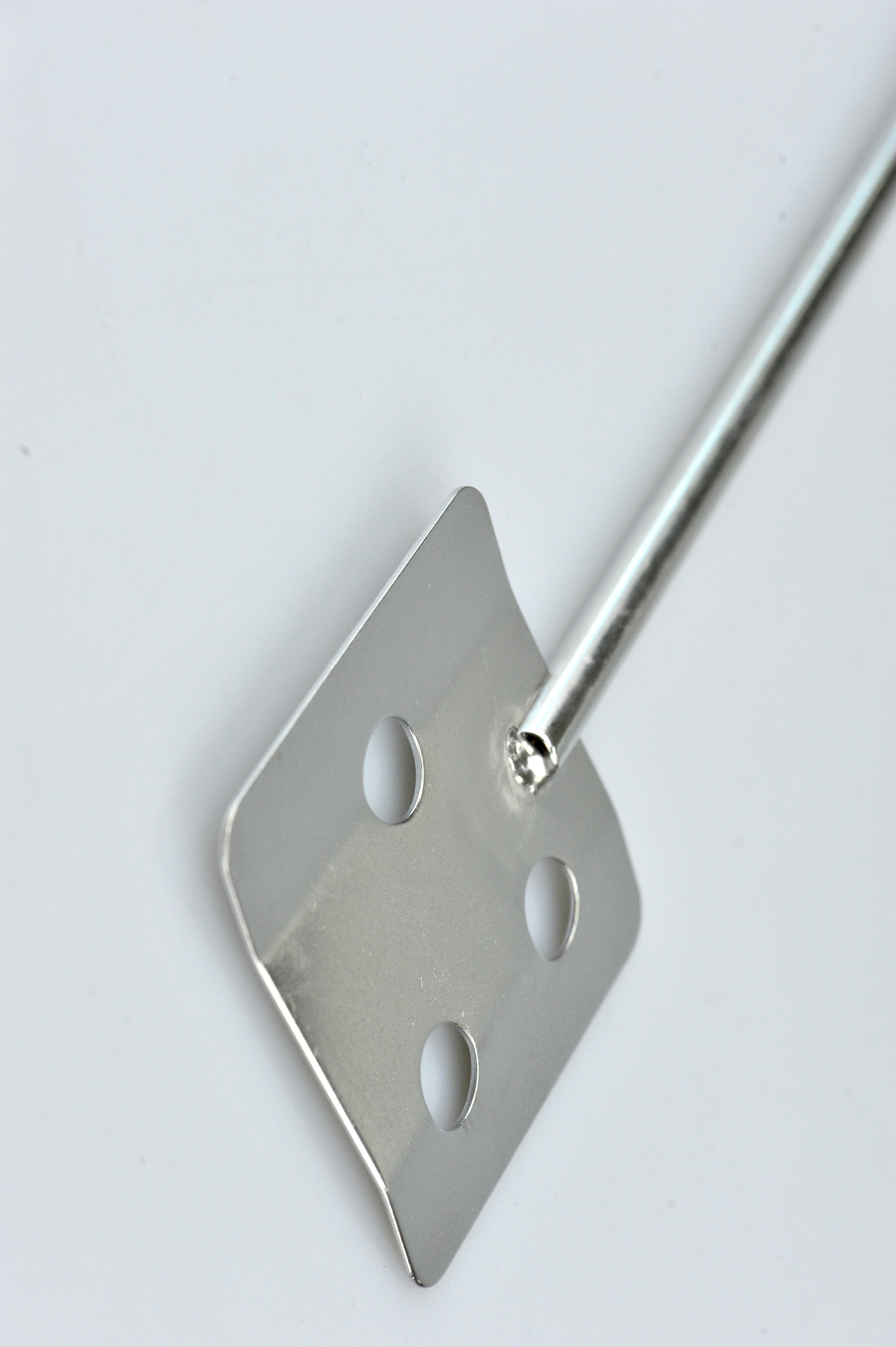

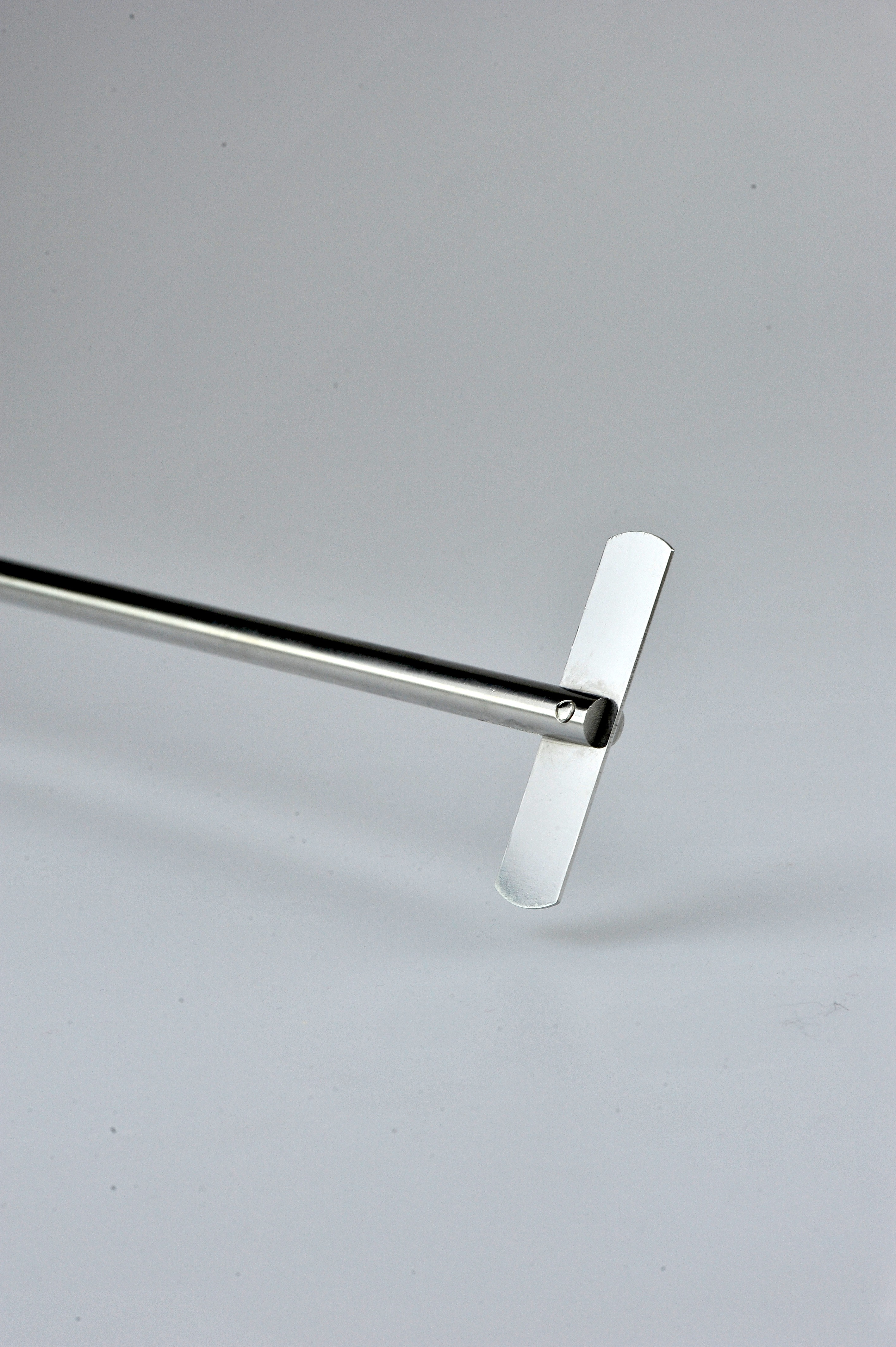

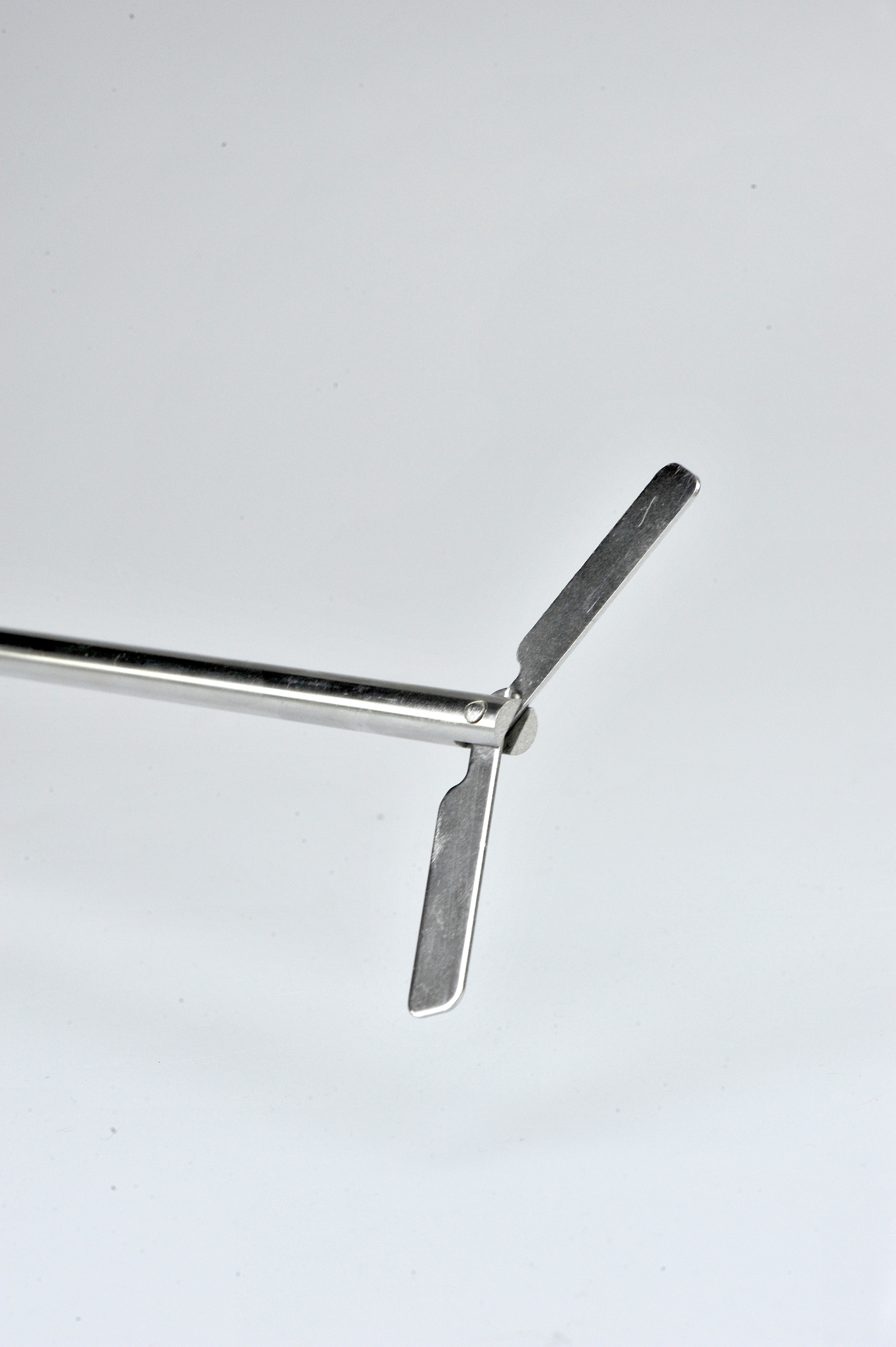

Optional Accessories


























---

Warranty Information

Manufacturer's Warranty:
The manufacturer warrants its products to be free of detects in materials and workmanship for the stated period from date of original purchase invoice. All warranties or merchant ability and fitness for any purpose and all other warranties, expressed or implied, except those expressly set forth herein, are deemed waived and excluded. Manufacturer's duty under the warranty is limited to replacement and/or repair of the defective part at their exclusive option. Seller shall not be liable for any expenses or damages incurred by the purchaser except as expressly set forth herein, and in no event shall seller or manufacturer be liable for any special, incidental or consequential damages of any kind. This warranty does not supersede any statutory rights that may be available in certain countries. The foregoing manufacturer's warranty of shall be voided, and of no force and effect if buyer has modified or damaged the product.
